TG-8060 PDF Temperature recorder
Automatically record the temperature fluctuation / Low-power
consumption & long-time endurance
lTemperature measurement for long-term sea transportation
lRecord the temperature during fresh milk product transportation
lUltra-thin compact design
lLow-power consumption & long-time endurance
lOver-temperature alarm & prompt
lEncrypted PDF report
lAutomatically record the temperature fluctuation
lOwn IP67 waterproof performance.
lAutomatically record the temperature fluctuation / Low-power
consumption & long-time endurance
Brief introduction
TG-8060 PDF Temperature recorder is aiming at liquid storage
medicine, vaccine, blood, Cold chain logistics, food, chemical
industry, agriculture, meteorology, pasturage etc fields, which is
used to record the temperature change automatically in a long time.
The recorder owns IP67 waterproof performance, ultra-thin compact
appearance, low-power consumption & long-time endurance,
over-temperature alarm, it can automatically generate unmodifiable
PDF reports. With this PDF recorder, the user needn’t install the
driver program, after recording, the user can directly insert it
into USD interface of the computer, it will automatically generate
PDF file, and the report is encrypted, so as to ensure the file is
unmodifiable & safe.
Typical application
Temperature record for fresh milk product transportation;
temperature record for medical blood & vaccine transportation and
storage; record for seeds & microorganism cultivation process;
temperature record for chemical agent transportation / storage in
laboratory or during industrial production ; temperature record for
biological & scientific container; temperature record for long-time
sea transportation; temperature record for museum or library or
machinery room and so on.
Main characteristics:
A kind of automatic long-time temperature change recording
product
Ultra-thin compact design
Temperature recorder owns IP67 waterproof performance.
Low-power consumption, long-time endurance.
Over-temperature alarm or prompt
Directly generate unmodifiable PDF report.
No need install driver program when using PDF recorder.
After completing record, the user can directly insert it into USB
interface of the computer.
Automatically generate PDF report and the report is encrypted.
Make sure the material is unmodifiable & safe.
Performance& index
| Measured temperature | -35℃-80℃(-31-176︒F) | Recorded days | Default : 60 days (The user can customize among 30 days, 90 days,
120 days, 180 days). |
| Resolution | 0.1℃(0.2︒F) | LED | Green LED & Red LED to indicate the status |
| Storage temperature | -35℃-80℃(-31-176︒F) | Communication mode | Connect it to USB directly (no need install any software). |
| Measured precision | 0.5℃/0.9︒F | Waterproof class | IP67 |
| Temperature drift | Omit | Weight of the whole machine | Around 14g |
| Document format | PDF | Battery | CR2450 wide-temperature battery ( one year of endurance at room
temperature) |
| Recorded capacity | 16000 dots | Product size | 63mm x 33.5mm (No including the package) |
| Sampling interval | Select from 10 seconds to 12 hours (default setting: 5 min) | Alarm setting | Three groups of high temperature / Two groups of low temperature
(Default setting: High temperature alarm threshold: 8℃; Low
temperature alarm threshold: 2℃) |
| Sensor | NTC Built-in high sensitivity sensor |
| Start mode | The default mode is to press the key for 5 seconds, and the
machine will defer for 10 min to start working. (The user can
customize the start timing and modify the deferring time). | Parameters | Highest temperature, lowest temperature, average temperature,
temperature curve, Temperature & time history table; Time zone,
Start time, End time, Accumulated time etc. |
Temperature record for biological & scientific & technological
container etc cultivation
Temperature record for medical blood & vaccine transportation &
storage
Temperature record for chemical agent transportation / storage in
laboratory or during industrial production
Temperature record for museum or library or machinery room and so
on.
Temperature record for seeds & microorganism cultivation
Temperature record for fresh milk product transportation

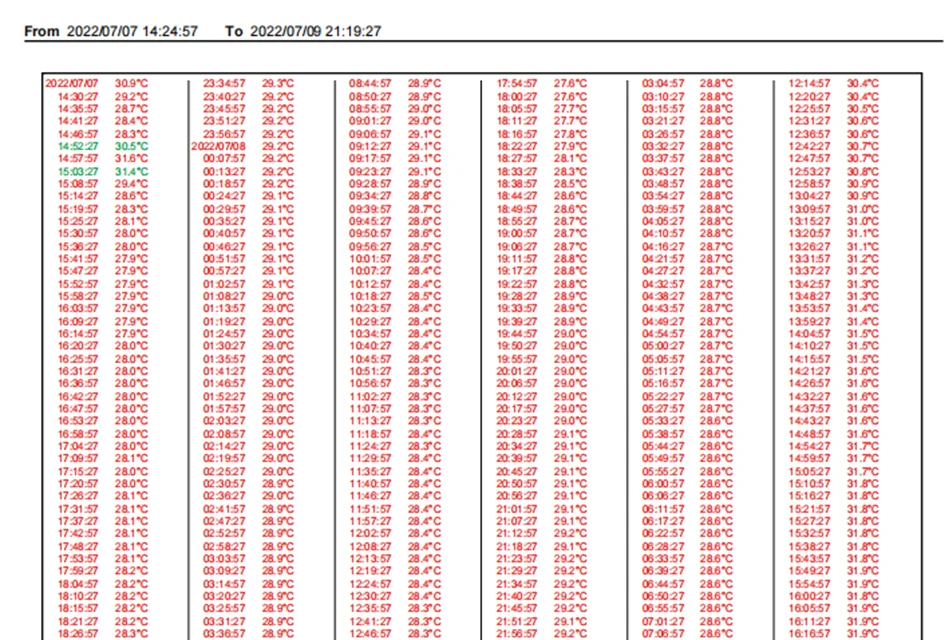

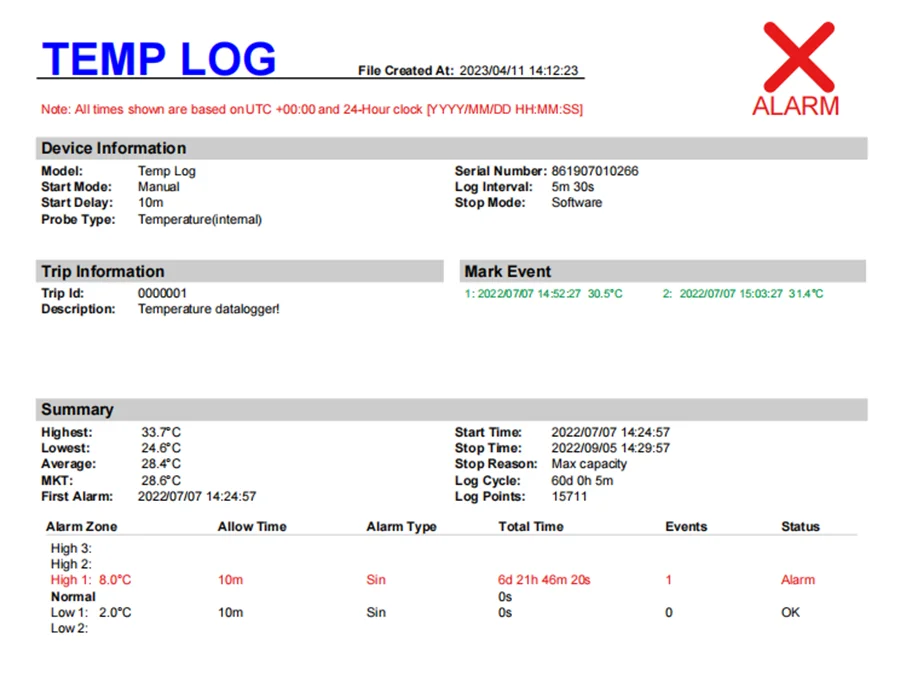

DATA LOG SAMPLE PICTURES
