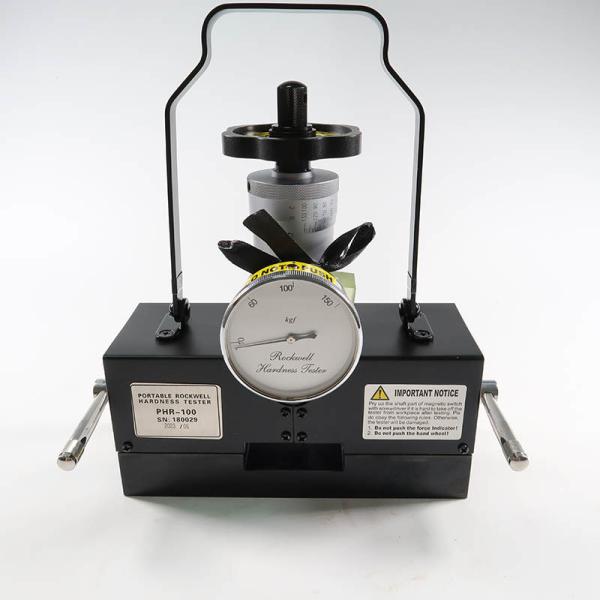

HR100 Magnetic Rockwell Hardness Tester

Fix Rockwell test head to the surface of iron and steel parts to test the hardness
by applying magnetic force. Follow Rockwell hardness test method completely and
the test condition complies with standard of ISO 6508 and ASTM E 18.The
magnetic Rockwell hardness tester is mainly applied in on-site quick test body
hardness of steel parts.Test hardness of steel plate, pipe, axis, mould, huge
forgings and huge and medium-size heat treatment parts if surface available.Test
hardness of weld joint in boiler, pressure vessels, and pressure pipes.Replace
low accurate and reliable Leeb hardness testers.

Features:

lt is Convenient to Use Attach to one
side of part to test, no need to move it.

NDTTesting Quick, convenient, no damage test.

NDT Reading Scale Similar reading system as micrometers,
easy to read, and good repeatability.

NDT High Accuracy Rather high accuracy, complying with ISO6508 and ASTM E18.

Technical Parameters:

Initial Test Force for Rockwell: 10kgf
Total Test Force: 60kgf, 100kgf, 150kgf
Test head: 120°diamond indenter, 1.588mm carbide
ball indenter
Indication Error: Comply with ISO 6508 and ASTM E 18
Indication Error: Comply with ISO 6508 and ASTM E 18
Testing Resolution: 0.5 HR
Weight: 4.7 kg
Surface: Flat : Area ≥ 180 mm x 60 mm Thickness: ≥ 5 mm
Cylinder: Diameter ≥ 60 mm Length ≥ 200mm,Thickness ≥ 8 mm
