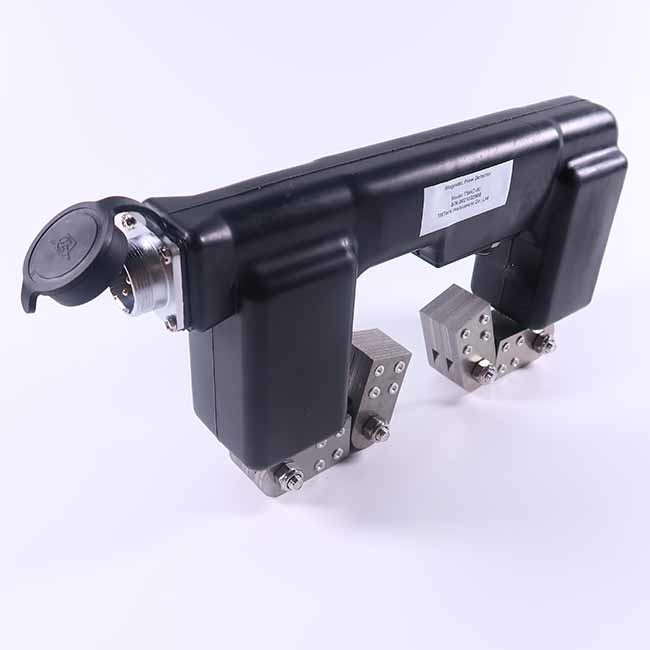

TMAC series Handheld Magnetic Yoke Flaw Detector with Sound-light Alarm Function Adjustable Magnetization Intensity

TMAC series Handheld Magnetic Yoke Flaw
Detector with Sound-light Alarm Function Adjustable Magnetization Intensity

Introduction:

With the characteristics of compact structure, reasonable layout, compact size, light
weight and easy to carry, this kind of detector can be directly plugged into
AC, as well as be equipped with AC magnetized power supply (AC battery pack)
and DC magnetized power supply (DC battery pack), which is of high efficiency
and compactness. Besides, it is applicable for inspection of hull welds,
high-altitude steel structure welds and internal operation of pressure vessels.

Moreover, it is suitable for magnetic powder inspection of surface and near surface defects for
various steel structures, boilers, pressure vessels, pressure pipes and welding
structures in electric power, metallurgy, petrochemical, machinery and other industries.

Feature:

• Be directly connected to AC power supply for place with direct insert AC power supply;
• For place without direct insert AC power supply, AC magnetized power supply (AC battery pack) can be used to realize AC magnetization inspection function.
• DC magnetized power supply (DC battery pack) also can be selected to realize
  function of DC magnetization.

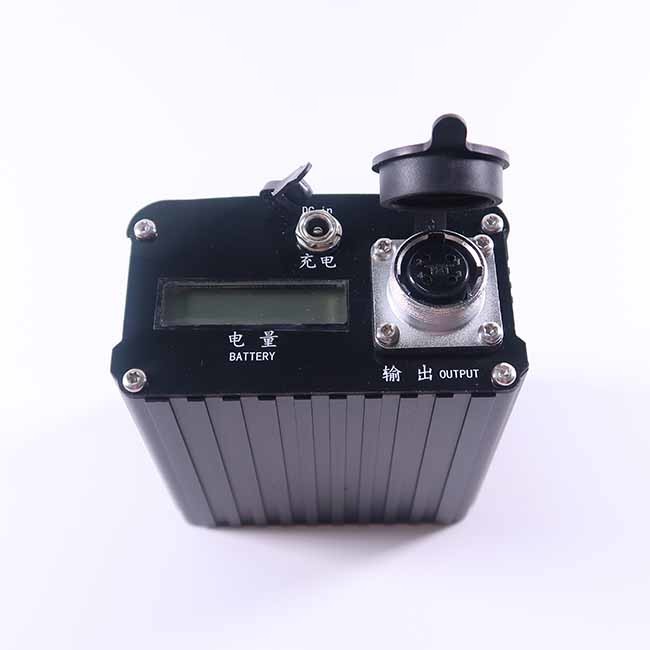

• AC magnetized power supply (AC battery pack) has the protection function of stable voltage output, over-charge, over-current, over-discharge.
• Automatic power off will be started when the lifting force is insufficient, so as to
  ensure the detection sensitivity.
• Power display function, which can display current battery capacity, as well as with sound-light alarm function.
• Built-in microcomputer chip, stable output voltage to ensure detection sensitivity.
• Adjustable magnetization intensity
• Special working pockets, which can carry battery pack, magnetic suspension, contrast agent, magnetic yoke probe, etc.
• Working temperature: -10～+40℃
• Storage temperature: -20～50℃
• Relative humidity: No condensing<80%
• Operation temperature rise: <18℃
• Duty cycle: >50%
• Sensitivity:type A1 standard specimen 15/50 grooves are clearly displayed
• Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg(68.6N)
• Minimum DC boost: >18.1kg(177N), maximum DC boost: 23kg (225N)

Parameter table of magnetized power supply

Package :

Main engine 1

Power cord 1

Charging AC magnetized power supply 1

AC/DC magnetized power pack (OPTIONAL)

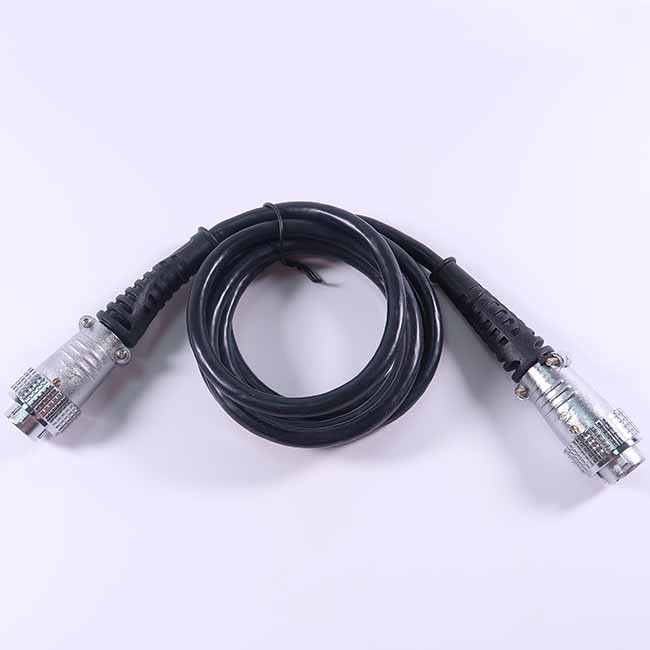

Output cable of magnetization power supply 1

Instrument box 1
