TMBS-3000XP-Z Automatic Brinell hardness tester

Product Introduction

1. Automatic closed-loop pressure control, automatic loading, automatic load;
2. Tester body designed in Italy, Ample sample space for large samples.
3. Wide force measurement range: from 62.5 to 3000 kgf, 10 brinell scales, can be customized;
4. Automatic turret, automatic loading and unloading, no need for auto focus after loading;
5. Z-axis automatic ascending and descending. After placing sample, push test button and the sample automatically ascends, after touching indenter, loading automatically starts, after unloading, turret automatically turns to sample location, z axis automatically focus and proceed testing.
6. Objective structured with digital encoder, calculate D1, D2 value, LCD directly displays hardness value and D1, D2 value.
7. Can calibrate according to standard block or length scale.
8. Test force can auto-correct using standard force meter.
9. Can convert to rockwell and vickers hardness value.
10. Touchscreen, easy operation, can input sample, name of testing personnel and other info.
11. Data can be saved as excel format in u disc for easy editing and processing.
12. railway, energy, steel, aviation, roller plants, tube rolling mills, foundries and so on.

Technical Parameters

Operation Interface

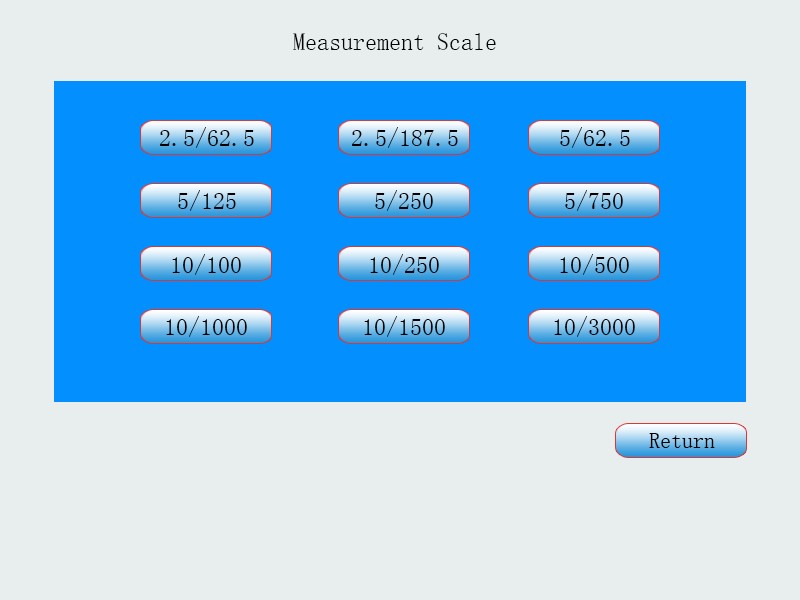

Main interface Brinell scale

Conversion scale Hardness calibration

Standard Accessories
