Tfd900 Portable Flaw Detector Ultrasonic In Strong Magnetic Environment

Ultrasonic Flaw Detector TFD900

The TFD900 is an ultra-light handy UT instrument of outstanding performance. Compatible with EN12668-1:2010,

This instrument is mounted with TG TFT display of full WVGA (800×480) resolution forexcelling visibility even used outdoors or in strong sunlight. Another amazing feature of this product is the “square wave drive” which realizes the user’s dream for best sensitivity and resolution. Moreover, it’s compatible with EN12668-1:2010, the popular instrumentation standards widely recognized in European and even the international market. Weighing only 0.9kg, this apparatus enables the user to carry it just like an on-hand tool for instant inspection task. All these distinct advantages make it superior as compared to its counterparts.

Highlights of TFD900
☆ Curved Surface Consideration
☆ DGS & DAC functional Curve
☆ RF Waveforming Mode
☆ Recording (1 Hour in Total)
☆ Echo Crest Tracking

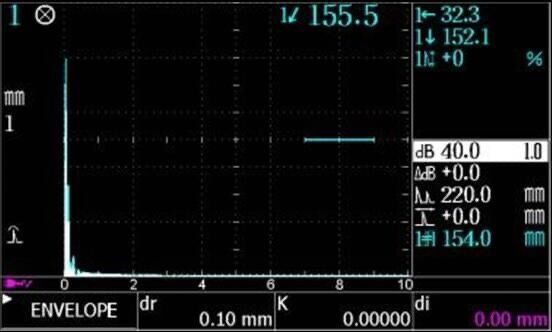

☆ Enveloping (for Waveform Comparison)
☆ AWS D1.1 Evaluation Module
☆ API 5UE Evaluation Module
☆ Performance Indices Test
☆ 1000 Frames of A-scan Storage
☆ ComApp for PC Review and Report Print
☆ 0.9kg in Weight

Features:
· Circuitry of advanced design and sampling frequency up to 640MHz ensure instant and accurate display and analysis of flaw signals even when they’re weak.
· State-of-the-art square wave drive technique
· Weighing only 0.9kg, convenient for operation and taking it along
· TG, full WVGA TFT display
· 8+ hour battery life promises consecutive working, inbuilt smart-type battery charger, auto-switching between the status of charging and that of powering.
· External USB port for software upgrading, data transferring and printing, graftable to mouse, keyboard and USB disc.
· EN12668:2000 compatible

Specification

Attenuator Error	Per 12dB ±1dB
Equivalent Input Noise	<80×10^-9 V/√HZ^
Pulse Type	-ve square wave, Tv: 25~250V ; tunable with 25V per step
Working Modes	TR ; T&R
Damping	40080 Ohm
Working Frequency	WN Band, W: 0.5~20MHz; N: 1.5~3MHz
Gain	0.0~110.0dB; 0.11.02.06.0 dB per step; smart speed-up at 0.1dB
Material Velocity	1000～15000m/s tunable; preset 30 frequently-used Vs optional
Display Reachable	0.0～10000mm LW at steel velocity tunable with min 0.1mm per step
Rectification	Positive, Negative, Full, RF (1002^plus)
Gate & Alarm	Dual gates, hardware driving real-time alarming; Alarming condition: excessloss DAC; Alarm mode: sound ;
Gate & Alarm	Spotting: peak
Display	TG, TFT 5.6 inch WVGA color display, resolution 800×480
Pulse Shift Range	-7.5~3000μs
Probe Delay Available	0~999.9μs
PRF	25~800Hz, auto adaptation
Vertical Linearity Error	≤3%
Horizontal Linearity Error	≤0.2%
Sensitivity Surplus	≥60dB (200Φ2 FBH)
Discernibility	≥36dB (mated with 5MHzΦ14 transducer)
Dynamic Range	≥32dB
Rejection	(0~90) %, without any dent to linearity or gain
NL	＜10%
Ports	BNC probe connector
Ports	USB HOST
Power Supply	Large-capacity Li battery without memory effect; battery life: 8+ hrs;
Power Supply	In-built battery charger (independent charger optional); AC: 220V
DustSplashWater Proof	IP54
UT Standards	Compatible with EN12668-1
UT Standards	Meets JB/T 10061-1999
Ambient Temperature	-30~50℃
Relative Humidity	20%~95%
Weight	Around 0.9kg (with battery & in-built charger)
Dimension	Upper Part: 215mm×126mm×53mm
Dimension	Lower Part: 215mm×104mm×42mm
