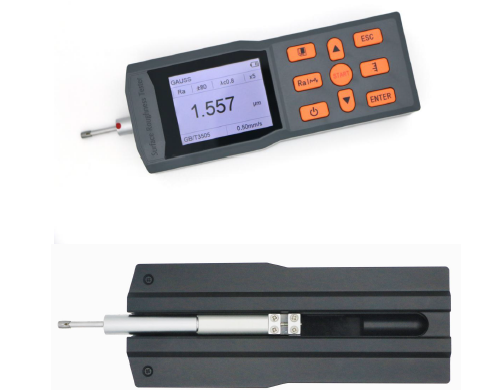

TMR201 Hand-held Surface Roughness Tester
Introduction
TMR201 Hand-held Surface Roughness Tester is a new generation of
Surface Roughness Tester Series. It features high accuracy, wide
application, simple operation, portability and stable performance.
The tester is widely used in measuring the surface roughness of
various metals and non-metals.
Application
1. Machining process control: grinding, turning, milling, honing,
polishing, etc.
2. Heavy industry: shipbuilding, aerospace, pipeline, steel plate
3. Aerospace: turbine blades, turbine shafts, wings and other
composite materials.
4. Others: printing roller, floor, and glass.
Measuring Principle
By using wear-resistant diamond needle parts and precise motor
drive structure, the sensor walks at the absolute linear movement
specified by the standard, and walks at the correct horizontal
distance.When the low test force tentacles across the wave peak and
wave valley, the high precision inductive bridge circuits will
detect their vertical displacement through modulation,
amplification and phase sensitive detection wave. The sensitivity
can up to nanoscale level.The voltage signal corresponding to the
roughness is transmitted to a high computing power ARM + DSP
processor, using a standardized algorithm to calculate the surface
roughness parameters instantly.
TECHNICAL SPECIFICATIONS
<
| Application | Measure surface roughness |
| Type | Portable |
| Measuring range | Z-axis(vertical) | Upper limit:200μm; |
| Lower limit:0.010μm; |
| X-axis(horizontal) | 17.5mm(0.71inch); |
| Circuit resolution | Z-axis(vertical) | 0.002μm±20μm; |
| 0.004μm±40μm; |
| 0.008μm±80μm; |
| Parameters | Ra Rz Rq Rt; |
| Rp Rv R3z R3y Rz(JIS); |
| Rs Rsk Rku Rsm Rmr; |
| Standards | ISO4287; ANSI B46.1; |
| DIN4768; JIS B601; |
| Display | 320*240 LCD color display. Display TP curve, roughness filter
waveform； |
| Communication | USB interface |
| Storage | 100 sets of data |
| Filter | RC,PC-RC,Gauss,D-P； |
| Sampling Length (mm)(lr) | 0.25,0.8,2.5； |
| Evaluation Length (mm)(ln) | Ln=lr×n n=1～5； |
| Sensor | Measurement principle | Electromagnetic inductance; |
| Stylus | Natural diamond, 90° tip radius, radius of stylus point 5μm； |
| Test force | ＜4mN； |
| Skid | Cemented carbide, drive direction radius 40mm； |
| Drive speed | lr=0.25 ,Vt=0.135mm/S； |
| lr=0.8 , Vt=0.5mm/S； |
| lr=2.5 , Vt=1mm/S； |
| On returning Vt=1mm/S； |
| Display resolution ratio | 0.001μm； |
| Display error | ±(5nm+0.1A) |
| Repeatability of displayed value | ≤3%; |
| Residual profile | ≤0.01μm; |
| Battery | 3.7V rechargeable Li-on battery |
Features
1. High-speed ARM+DSP processor with low power consumption, strong
computing power and fast calculation speed, and the result will be
available within 1 second after the travel.No need to wait.
2. Collect thousands of datas in the distance of travel to
accurately reproduce the surface of the workpiece.
3. Precise digital filter. Ensure machine repeatability is less
than 2%.
4. 10% accuracy error in line with the national standard.
5. Adapt to high temperature, high humidity, high vibration working
environment.
6. The test results can be traced back to the roughness parameters
of the national benchmark.
7. Diamond touch needle, strong and durable.
8. Unique software processing. Start the test immediately, no need
to wait.
9. Precision inductive bridge sensor with resolution up to
nanometer level.
10. Low measuring force sensor in line with national standards has
low impact on user workpiece.
Characteristics

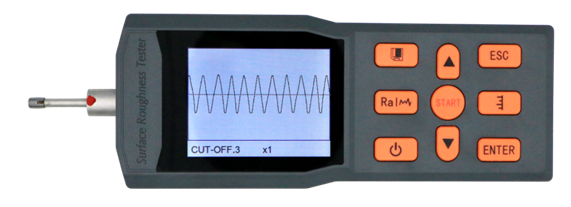

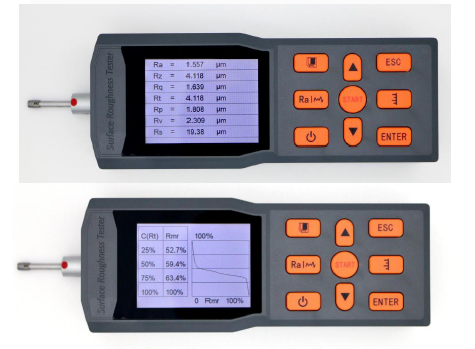

1. 320*240 Highlight color LCD screen, exquisite display of
roughness waveform.
2. 320*240 Highlight color LCD screen.Adapt to the low-light
workshop environment
3. Simple nine-button operation. clear and simple.
4. Simple and intuitive menu design is convenient to set roughness
parameters.
5. Lithium battery power supply with USB charging. Charge it once,
users can use it thousands of times.
6. Very low motor sound. Strong operating comfort.
7. Simple software calibration. Errors can be quickly corrected on
site.
8. Up to 26 roughness parameters.
9. With the USB communication function, users can upload the data
to the computer and PLC.
10. 100 sets of test data storage.
Package List
<
| Part | Quantity | Note |
| Standard | Host | 1 | |
| Sensor | 1 | Precision component |
| Adjustable support | 1 | |
| Sensor protector | 1 | |
| 5V ac power adapter | 1 | |
| USB cable | 1 | |
| Operating manual | 1 | |
| Qualified certificate | 1 | |
| Warranty card | 1 | |
| Packing list | 1 | |
| Equipment case | 1 | |
| Optional | Standard sample plate | | |
| Glass support | | |
| Curve sensor | | |
| Pinhole sensor | | |
| Quirk sensor | | |
