Customizable Roller Phased Array Probe Quick Handling For Aerospace Industry

Ask Lasest Price
Brand Name :	TMTeck
Certification :	CE
Payment Terms :	T/T, Western Union,Paypal
Delivery Time :	4-6 work days

Add to Cart

Product Details
Company Profile

Customizable Roller Phased Array Probe Quick Handling For Aerospace Industry

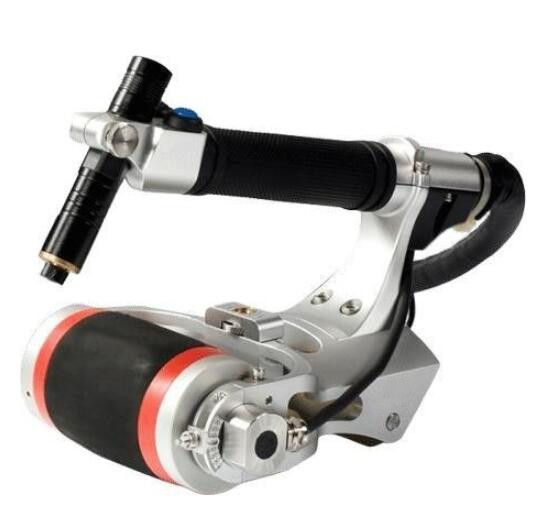

Phased Array Roller Probe

Phased Array Roller Probe newly put on sale by TMTECK, is for the purpose of inspecting pipes from radial or axial direction, in order to detect corrosions of the pipes or flaws in objects of composites or those of other materials with smooth surface used in aerospace industry. It's the best substitute for Full-2D encoding system and perfect counterpart to immersion technique.

Features:

Superior Coupling and Very Little Couplant.
Similar Acoustic Attenuation as to Water.
With 15mm Aqueous Delay Block, Making 30mm-thick Composites Inspectable.
51.2mm-wide Coverage of the Acoustic Beam.
Customizable.

Capabilities:

1. Quick handling of plates of composites or other materials with smooth surface. 2.Inspecting pipes from radial or axial direction.

3. Layered quatitation and quantative analysis on porosity of core layer of composites, and monitoring on the loss of the layer thickness.

Physical Parameters: O.D.: 70mm/90mm

THK: 6～15mm(6mm:5MHz; 15mm:0.5MHz)

LTH: 70mm/120mm

A.I.: 1.5MRayl

MTRL A.A.: 0.14dB/mm/MHz

Encoder PRN: 0.1mm

Encoder PRN:PHY port of the encoder: industrial standard (OC Output)

Cable LTH:5m (5m@10MHz)

Options:

						Outer Dimension
Model(Specs)	Freq.	E-Nos	E-Gap(C)	A.Apptr	A.Lth	L	W	H
Model(Specs)	MHz	E-Nos	mm	mm	mm	L	W	H
	MHz		mm	mm	mm	mm	mm	mm
						mm	mm	mm
TM-5L64-0.8*6.4	5	64	0.8	51.2	6.4	60	14	35
TM-5L128-0.8*6.4	5	128	0.8	102.4	6.4	112	14	35
TM-3.5L64-1.5*12	3.5	64	1.6	96	12	108	20	35
TM-1L50-2.0*16	1	50	2	100	16	108	24	35
