TMHV-30MDX Advanced Vickers Hardness Tester
Product characteristics:
- Ten level force from 0.3Kgf(2.94N)to 30.0Kgf(294N) , customized;
- Electric load ,closed-loop control,automatic loading；
- Test force automatic corrected,Accuracy raise a number of levels；
- Hardness value automatic corrected according to different hardness
block；
- No need to install the weight, no need to debug；
- Touch screen interface,any language version；
- Modular design, simple maintenance；
- Large sample space；
- Save more samples and test information；
- Set the password protection；
- Data saved as EXCEL format through USB flash disk, edit and process
easy；
- Available to upgrade to full automatic Vickers hardness tester.
Operation interface:
Main interface
10 kinds Vickers scales available

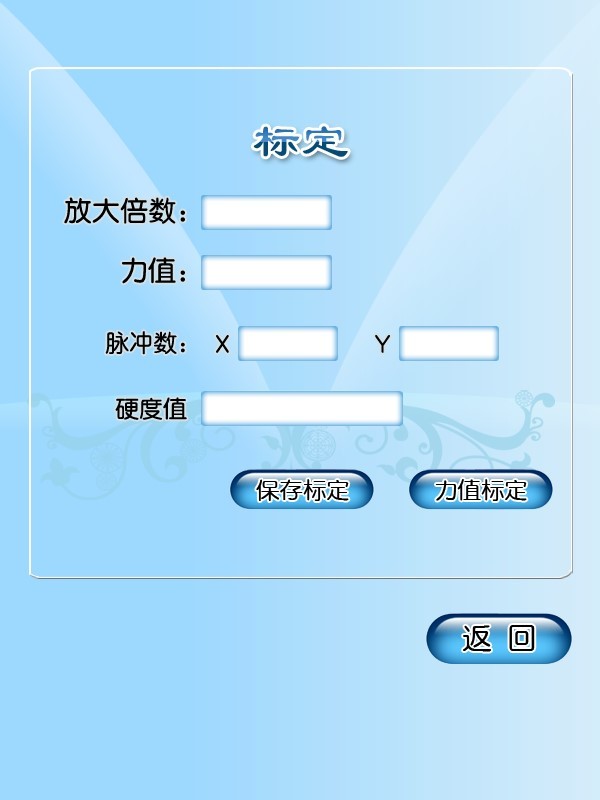

Multiple and force automatic correct
test force automatic correction
Technical Specifications:
| Model | TMHV -30MDX |
| Min measuring unit | 0.125µm |
| Test force | 0.3Kgf (2.94N),0.5Kgf (4.90N),1.0 Kgf (9.8N),2.0Kgf(19.6N), 2.5Kgf(24.5N),3.0Kgf(29.4N),5.0Kgf(49.0N),10.0Kgf(98.0N), 20.0Kgf(196N),30.0Kgf(294N) |
| Hardness measuring range | 4~5900HV |
| method of testing force applied | Automatic loading, unloading testing force |
| Objective,indenter exchange | Manual/Automatic(choosable) |
| Objective | Number: two Standard:10X,20X Optional:5X,40X(50X) |
| Test microscope magnification | Standard:100X,200X Optional:50X,400X |
| Test force duration time | 0~99S(per second as a unit,any entering) |
| Data output | Read by LCD,saved in USB flash disk as EXCEL document |
| Max Height of Specimen | 180MM |
| Distance of Indenter to outer wall | 160mm |
| Power supply | AC220V+5%,50-60Hz |
| Overall Dimension | 560mm*260mm*670mm |
| Net weight | About 40Kg |
Standard features:
| Item | Quantity | Item | Quantity |
| mainframe | 1 | Eyepiece 10X | 1 |
| Circular testing table | 1 | Large Testing Table | 1 |
| Vickers hardness block 550-750HV | 1 | Vickers hardness block 300-500HV | 1 |
| USB flash disk | 1 | Dustproof cover | 1 |
| Power cable | 1 | Fuse(2A) | 2 |
| Product manual | 1 | Product Certificate | 1 |
Optional:
1, Objective 5X, 40X,50X
2, Knoop indenter；
3, 15X micrometer ocular；
4, Digital display X-Y platform :
X,Y axis digital display precision:1mm；
5, Vickers hardness indentation measuring equipment:
Used to show indentation( Brinell / Microhardness / Vickers) on the
screen, Replace the eyepiece to determine the indentation border
,and measure the hardness;
6, Vickers measurement software:
Show a clear indentation on the computer screen,and automatic or
manual measurement；
7, Universal jig,smoothing board,inserts jig；
8, Hardness block,the third party identificated, Metrology
institute etc；
9, Consumables for preparing specimen.
