Cross Hatch Cutter

Specifications

TMTeck design cross hatch cutter is applicable to determine the adhesion of organic coatings by cross-hatching.This instrument is designed for assessing the resistance of paint or related coatings to separation from substrates when a right-angle lattice oattern is cut into the coating, penetrating through to the substrate.
The Cross Hatch Cutters conform with the requirements of :BS 3900 E6;BS/EN ISO 2409;ASTM D 3359;GB/T 9286, ,it is economy.
Main Technical Parameters:
1.Six working side blades:When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to change blade.
2.Multi-cutting blades spacing:1mm/2mm/3mm
3.The number of square:25squares/100squares

Main technical parameters:

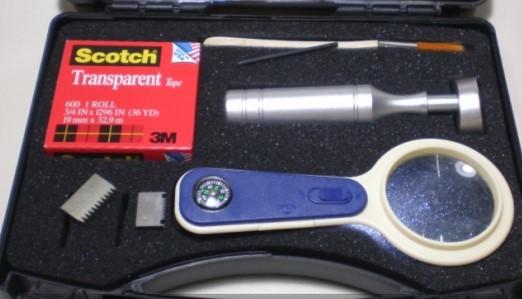

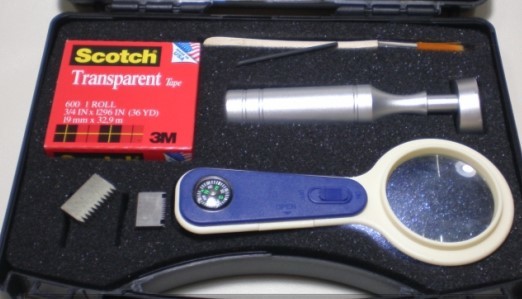

Standard package:

Cross Hatch Cutter:1pcs

Magnifier: 1pcs

Brush:1 pcs

Gummed tape(3M):1pcs
