Brand Name : | TMTeck |
Model Number : | TMXQ-2B |
Certification : | CE |
Payment Terms : | T/T, Western Union,paypal |
Supply Ability : | 100pcs/month |
Delivery Time : | 7-15 days |
Price : | Negotiation |

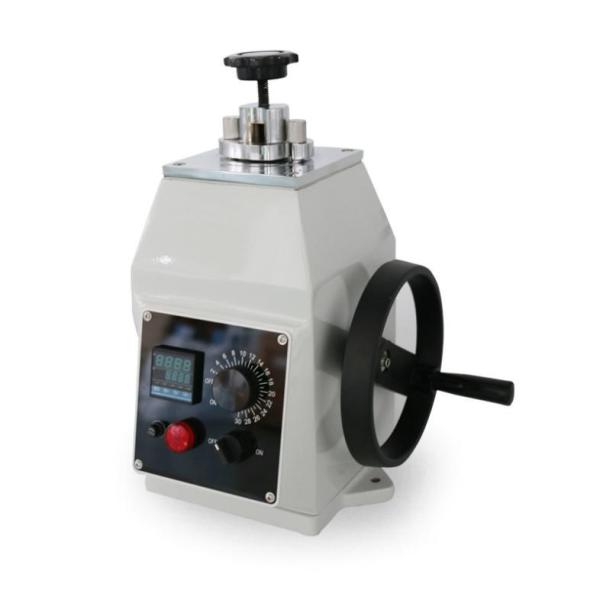

Mounting press, Inlay machine, metallographic sample preparation equipment price
Product description:
1. Applicable to the thermos-hardening plastic pressing of the
small metallographic specimen
Working conditions:
1) The height is no more than 1000m;
2) The temperature of surrounding medium can not be lower than -10
°C or over 40 °C;
3) The relative humidity of air should be no more than 85% (20 °C).
4) The voltage fluctuation should be no more than 15% and there
should be no obvious vibration source around.
5) There should be no current conducting dust, explosive and
corrosive air.
Product Specifications:
Specification | |
Specification of the Sample | 22*15mm, 30*15mm, 45*18mm |
Heater Specifications | 650W,220V,50Hz |
Range of Temperature Adjusted | 100~180°C |
Power supply | Voltage fluctuations within ±15%, 220V,50Hz |
Dimension | 330*260*420mm |
Net Weight | 33 Kg |
![]() |
