    Portable Automatic Brinell Hardness Measurement system TMHB-SM

    TMHB-SM portable Brinell hardness Automatic Measurement System, using optical, electronic, computer and image analysis technology, dedicated to the automatic measurement of Brinell hardness.


    Product Introduction

    1. Convenient portability: the whole system is compact and exquisite in design, convenient in installation and simple in operation.
    2. Professional optical design: to ensure the brinell indentation image clear, well-defined boundaries.
    3. Accurate image analysis: combines shape, brightness and edge calculations to improve the accuracy of measurement results.
    4. Automatic measurement for standard samples, with automatic measurement button, convenient for testing.
    5. Brightness, contrast and lighting system can be adjusted, and parameter values can be saved and imported for different sample surfaces.
    6. Wide range of applications: laboratory, or industrial workshop, can obtain accurate test results.

    7. Powerful software functions: single piece measurement, batch measurement, hardness conversion table, data and image storage, database query, unqualified value alarm.

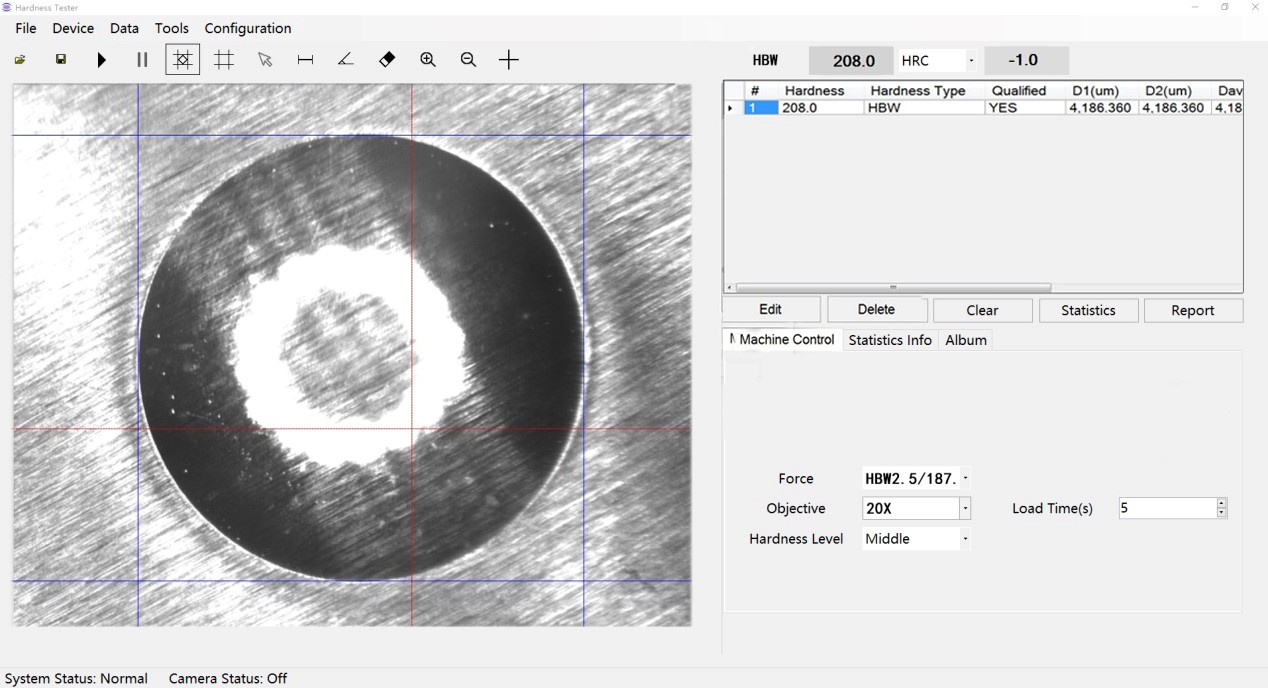

    Main interface of software


    Main functions

    1. Image acquisition: Real-time display of hardness indentation image, image can be stored and printed.
    2. Indentation measurement: good repeatability, high accuracy, wide applicability. Both manual measurement and manual adjustment are supported.
    3. Calibration method: standard hardness block calibration or length scale calibration
    4. Hardness conversion: Automatic brinell - Rockwell - Vickers hardness conversion.
    5. Graphic report: automatically record measurement data and output WORD report according to user's custom.
    6. Database support: support database, convenient for users to query.

    Technical parameters

    ModelTMHB-SM
    Brinell hardness scaleHBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/250 HBW5/750 HBW10/100 HBW10/500 HBW10/1500 HBW10/3000
    Meet standardBSEN 6506, ISO 6506, ASTM E10, GB/T231
    Measuring range15.9-650HBW (ASTM E10 Recommended Effective hardness value)
    Measurement resolution0.0001 mm
    Hardness resolution0.1 HBW
    Digital imaging1.3 million industrial-grade digital cameras
    Measuring wayManual and automatic measurement (for standard samples)
    Calibration methodStandard hardness block/length scale
    Support languageChinese/English (optional)
    Power supplyUSB power supply
    Weight of the0.5 kg

    Standard Accessories

    ItemQuantityItemQuantity
    Portable Brinell hardness measuring head1 setStandard Brinell hardness block1 piece
    USB flash drive (software included)1Encryption dog1
    Product certificate, warranty card1Instructions1
