Ultrasonic Flaw Detector TFD800C PLUS
★User friendly dialog interactive helps operations like
Calibration, making curves, etc.
★ All tools you need: DAC, AVG, AWS, Weld diagram,etc.
★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise
design, perfect for tough working conditions.
★ 10-digit AD, high speed sampling leads to better echo diagram with
all details. Sensitive and can detect even tiny flaws.
★ Crystal clear true-color display. Helpful user interface makes the
operation much easier.
★Unlimited USB data storage.,PDF reports output.
Specifications
- Range:0-10000 mm ,at steel velocity
- Material Velocity:1000～10000 m/s
- Pulse Repetition Frequency:10-2000Hz
- Dynamic range:≥38dB
- Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier
Accuracy +/-1 dB.
- Resolving Power:>40dB (5P14)
- Sensitivity Leavings:>65dB
- Reject (suppression): 0 to 80% full screen height
- 500 independence setup, any criterion can be input freely, we can
work in the scene without test block；
- Big memory of 1000 A graph
- Test Modes: Pulse echo, dual element and thru-transmission
- Probe Types: Single Straight, Single Angle,Daul Straight, Daul
Anlge,Thrugh,Creeping,Surface
- Gate Monitors: Two independent gates controllable over entire sweep
range
- Units: Inch or millimeter
- Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
- Display Delay: -20 to 3400 µs
- Probe Delay/Zero Offset : 0 to 99.99µs
- Internal rechargeable Li-ion battery pack rated 7.2V at 5600 mAh
- 10 hours nominal operating time depending on display brightness
- 4 hours typical recharge time
- H×W×D(mm):240×170×38 (mm)
- Weight :1.0kg
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -30℃ to 50℃
- Pulse Energy: 200V, 300V, 400V, 500V selectable
- Rectification: Positive half wave, negative half wave, full wave,
RF System
- Gate Monitors: Two independent gates controllable over entire sweep
range
- Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0
dB.
- Transducer Connections: BNC or LEMO
Functions

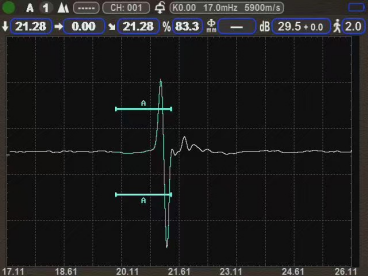

- Automated display precise flaw location(Depth d,level p,distance
s,amplitude,sz dB,ф).
- Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds
reporting of defect acceptance or rejection.
- Automated calibration of transducer Zero-point, Angles, Front edge
and material Velocity .

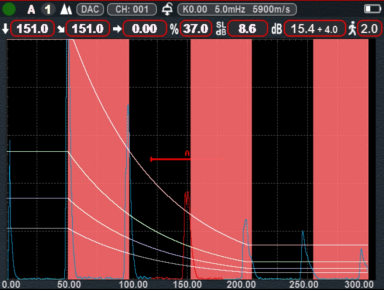

- Convenient to make and use DAC and AVG to evaluate the echo, the
curve can be modified and compensated.

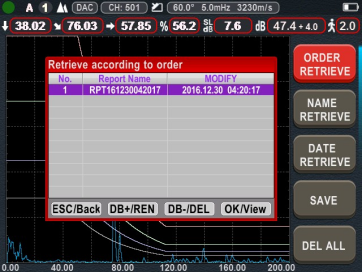

- Connectting U-disk,the unit can get unlimited memory,PDF reports
out put and Upadte system.
- Weld diagram.
- There are 15 standards of in the unit.
- AWS D1.1.
- Curved Surface Correction feature.
- Crack Height Measure function.
- Magnify gate:spreading of the gate range over the entire screen
width.
- Auto-gain function.
- Envelope: Simultaneous display of live A-scan at 60 Hz update rate
and envelope of A-scan display.
- Peak Hold: Compare frozen peak waveforms to live A-Scans to easily
interpret test results.
- Scan Freeze:Display freeze holds waveform and sound path data.
- Alarm:Beep and LED.
- Real Time Clock.
- Fill echo.
- Capture mark.
- Echo color within the Gate.

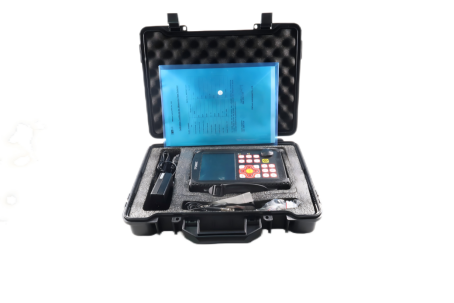

Base Instrument Package
- Portable Ultrasonic Flaw Detector
- Straight Beam Transducer (4 MHz, Φ10)
- Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
- Interconnect Cable for the transducer (Q9-C5,or optional C9- C5)
- Rechargeable Li-Ion Battery Package, 8 amp hour
- Power supply/charger unit
- Operating Manual in English
- App Software
- Strap
