Model WDW-100D Computer Control Electromechanical
Brief Information:

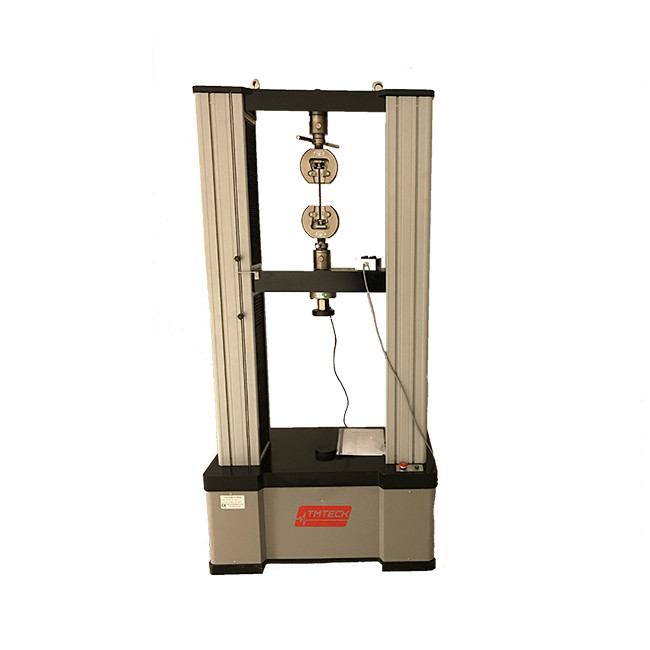

Model WDW-100D Universal Electromechanical Testing Machine is
designed and manufactured according to ASTM, ISO, DIN etc
standards. It is computer-controlled precision Testing Machine,
suitable for wide range of material for tension, compression,
Bending and shearing test. It has high stability as well as high
precision, equipped with PC system & printer for graph, test
result display, test control as set program, printing & data
processing. Complete with modulus for metal, spring, textile,
rubber, plastic and other material testing & creep test. It is
widely used in many fields such as industry factories, mineral
enterprise and high schools.
Features:
1. High accuracy servo motor to control test speed.
2. Ball screw no backlash to guarantee the low noise and high
driving efficiency
3. High accuracy load cell to measure the test load
4. High accuracy photoelectric encoder to measure the displacement.
5. Special testing machine software has strong function, it can
show test load, displacement, test speed, test status, and also has
the function of peak load holding, peak displacement holding and
self return original position.
6. Thousands of test fixture can be used according to different
test request;
7. Compact structure with easy operation.
8. Limit switch and setting in the software to guarantee the safety
Force Measurement:
Load accuracy meets or exceeds Grade 1 ASTM E4, ISO7500-1.
EN10002-2, BS1610, DIN51221
Displacement Measurement:
Encoder over 2000pulse/turn to guarantee the accurate displacement,
the encoder is installed with the ball screw, and the ball screw to
drive it turning directly.
Speed setting
Speed can be set between 0.01 -500mm/min by computer, and the
excellent servo motor can support the high speed, and the speed can
be extended by special offer.
Load frame:
Robust compact structure guarantees the stiffness of the machine,
and the servo motor drives the no backlash ball screw to do test.
Main Specifications:
Max. Load (kN):100
Load accuracy:≤±1%
Deformation accuracy: ≤±0.5%
Displacement resolution: 0.001mm
Speed: 0.01mm/min ~ 500mm/min
Tensile space: 600mm
Compression space: 700mm
Grips: Wedge type
Voltage: 220V, 1ph, 50Hz
Main accessories:
1. Mechanical wedge grip 1 set
Inserts for round specimen Φ4~Φ9mm, Φ9~Φ14mm,Φ14~Φ20mm 1 set for
each
Inserts for flat specimen 0~7mm,7~14mm, 14~21mm 1 set for each
2. Compression test attachment 1 set
3. Bending test attachment 1 set
4. High precision load cell 1 set
Flat load cell +/-100kN, Tensile & Compression type
5. Photoelectric encoder 1 set
Measure the displacement
6. Extensometer
Gauge length: 50mm, travel 25mm
7. Computer & printer & software 1 set
Computer: LENOVA or Dell
Printer: Hp
Software: English Version (For details, please refer to ANNEX-1)
