1.0 2.0 3.0 4.0 Inch 4 Step Ultrasonic Calibration Block

Ask Lasest Price
Brand Name :	TMTeck
Model Number :	step test block
Price :	Negotiation
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	50PCS/Two weeks
Delivery Time :	4-6 work days

Add to Cart

Product Details
Company Profile

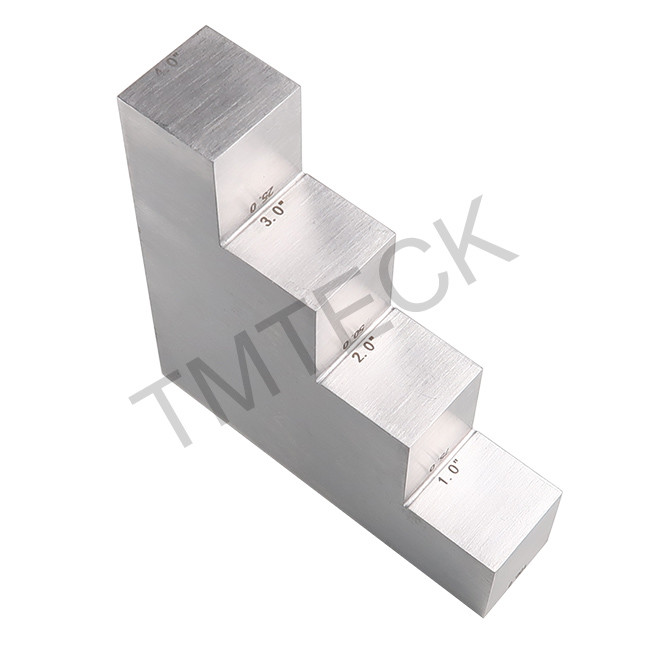

1.0 2.0 3.0 4.0 Inch 4 Step Ultrasonic Calibration Block

4 Step Thickness Meter Calibration Block 1018 Steel inch type 1.0 2.0 3.0 4.0 inch

INCLUDED MAKER CERTIFICATION AND ABS PLASTIC CASE

MATERIAL :1018 Steel or 304 stainless steel

Thickness:1.0 2.0 3.0 4.0 inch

Tipsy Step Block
Special Step Block for thickness and linearity calibration. This versatile block
contains eight (8) steps. Set it down on one side and get the 1.0, 2.0, 3.0 and 4.0"
steps. Then "Tip" it over and get the 1.5, 2.5, 3.5, and 4.5" steps. Step faces
measures 1.00" x 1.00". Manufactured in accordance with TMTeck drawing . Step thickness tolerance is ±0.002". Metric version with steps measuring
25.0, 37.5, 50.0, 62.5, 75.0, 87.5, 100.0, and 112.5mm also available. Step faces
on metric block measure 25.0mm x 25.0mm. Our new Universal Tipsy Block
design combines both measurement scales on one handy block. Stand it up to
calibrate on the 1.0, 2.0, 3.0, and 4.0" thicknesses; then "Tip" it over to get the
25.0, 50.0, 75.0, and 100.0 mm steps.

Package including

1 unit 1018 Steel 4 steps Calibration Test Block

1 certification

1 suitcase

1.0 2.0 3.0 4.0 Inch 4 Step Ultrasonic Calibration Block
