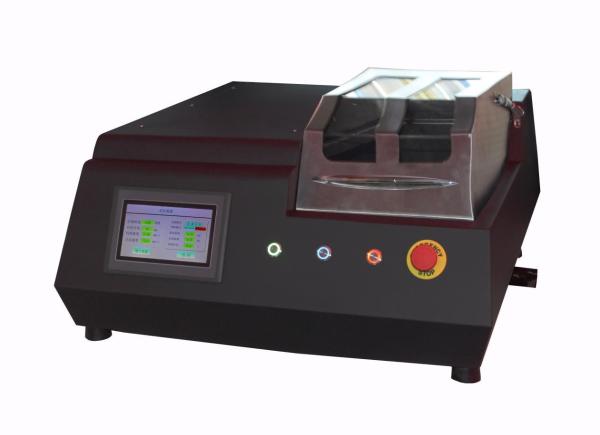

High-speed precision cutting machine TMGS-500B

Purpose and characteristics

TMGS-500B precision cutting machine is suitable for precise non-deformation cutting of metals, electronic components, ceramic materials, crystals, cemented carbide, rock samples, mineral samples, concrete, organic materials, biological materials (tooth, bone) and other materials . The equipment has high positioning accuracy; wide speed range; strong cutting ability; strong circulating cooling system; preset feed speed; touch screen control display, easy to operate and control; automatic cutting can reduce operator fatigue and ensure the sample production Consistency; large and bright cutting room with safety switch. It is one of the ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high-quality samples.

Main Specifications

1.Cutting disc standard: φ200xφ32x0.9

2.Spindle speed: 500-5000r/min

3.Feed speed:0.01-5mm/s

4.Manual feed speed: 0-30mm/s

5.Impact cutting distance: 0.1-2mm

6.Cutting stroke (Y axis) :200mm

7.Maximum cutting diameter: φ60mm

8.Maximum clamping length of worktable: 150mm

9.Maximum clamping width of worktable: 200mm

10.Servo motor power: 750w

11.Total power: 1000W

12.Use method data can store:10 kinds

13.Power supply: AC220V 50HZ

14.Dimensions :750×860×430mm

15.Weight: 126KG
