Ultrasonic Flaw Detector TFD810C
★ User friendly dialog interactive helps operations like Calibration,
making curves, etc.
★ All tools you need: DAC, AVG, TCG,color Bscan, AWS, etc.
★ Pulse Repeatition Frequency: 20-3000Hz precise adjust, high speed
scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise
design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with
all details. Sensitive and can detect even tiny flaws.
★ Crystal clear true-color display. Helpful user interface makes the
operation much easier.
★ High speed real-time flaw detection video recording. Unlimited USB
data storage.
★ Blue tooth connection to mobile device to generate and print
detection reports on-site.
★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid
and lasts forever. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge. Each battery has own
charging control so with two batteries it can work around the
clock.
Specifications
Range:0-15000 mm ,at steel velocity
Material Velocity:100～20000 m/s
Pulse Repetition Frequency:20-3000Hz
Dynamic range:≥38dB
Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier
Accuracy +/-1 dB.
Resolving Power:>40dB (5P14)
Sensitivity Leavings:>66dB
Reject (suppression): 0 to 80% full screen height
500 independence setup, any criterion can be input freely, we can
work in the scene without test block；
Big memory of 1000 A graph
Test Modes: Pulse echo, dual element and thru-transmission
Probe Types: Single Straight, Single Angle,Daul Straight, Daul
Anlge,Thrugh,Creeping,Surface
Gate Monitors: Two independent gates controllable over entire sweep
range
Units: Inch or millimeter
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
15 hours nominal operating time depending on display brightness
4 hours typical recharge time
H×W×D(mm):260×175×60 (mm)
Weight :1.2kg
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃
Pulse Energy: 200V, 300V, 400V, 500V selectable
Rectification: Positive half wave, negative half wave, full wave,
RF System
Bandwidth (amplifier bandpass ): 0.2 to 35 MHz
Gate Monitors: Two independent gates controllable over entire sweep
range
Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0
dB.
Transducer Connections: BNC or LEMO
Functions
Automated display precise flaw location(Depth d,level p,distance
s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds
reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge
and material Velocity .
Convenient to make and use DAC and AVG to evaluate the echo, the
curve can be modified and compensated.
Connectting U-disk,the unit can get unlimited memory.
Automated make video of test process and play; use upan,the length
of video is unlimited.

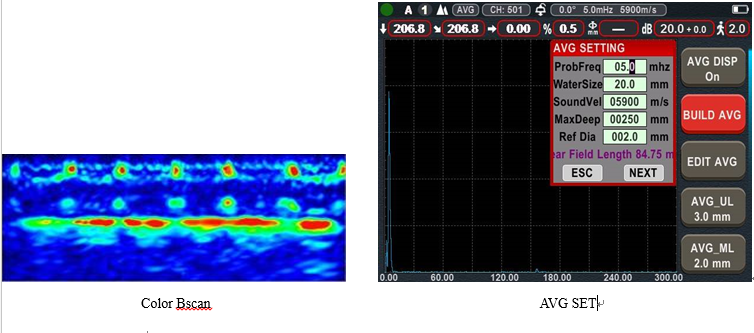

Color Bscan.
There are 15 standards of in the unit.
Blue tooth connection to mobile device to generate and print
detection reports on-site. AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen
width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 60 Hz update rate
and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily
interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.

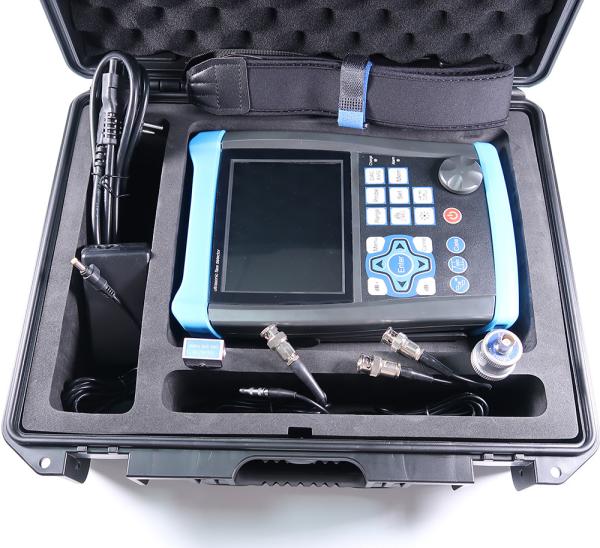

Base Instrument Package
Portable Ultrasonic Flaw Detector
Straight Beam Transducer (4 MHz, Φ10)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cable for the transducer (Q9-C5,or optional C9- C5)
Rechargeable Li-Ion Battery Package, 8 amp hour
Power supply/charger unit
Operating Manual in English
App Software
Strap
