Concrete CE Crack Width Meter Detection Range 0-8mm Accuracy 0.01mm

Ask Lasest Price
Brand Name :	Tmteck
Model Number :	TMCK-12
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T, Western Union,paypal
Supply Ability :	100 pcs/1 Month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Concrete CE Crack Width Meter Detection Range 0-8mm Accuracy 0.01mm

TMCK-12 Crack Width Gauge Meter Can Be Widely Used in Bridges,Tunnels, Buildings, Concrete Pavement, Metal Surface Crack Width

Brief Introduction

TMCK-12 of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.

Features:

1. An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen;

2. Automatic shooting crack photos, real-time image display;

3. Stored photos, data can be playback viewing;

4. probe (camera) comes with lighting fixtures, work around the clock, from the light changes;

5. Simple alignment of cracks can be automatically reading, without any set up, fool operation;

6. Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;

7. The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number;

8 . Host and the probe share a lithium battery-powered.

9. Reference specification: GJG125-99 "dangerous building appraisal standards.

The main technical parameters:

1. The maximum detection range of 0-8mm

2. Accuracy: better than 0.01mm

3. Magnification: 40times/20times/13times/10times, optional

4. 40 times the probe: Automatic reading of the measuring range: 0.01-2 .1 mm; Automatic reading accuracy: better than 0.01mm ( 0.007mm) (20 times the probe);

5. 20 times the probe: Automatic reading of the measuring range: 0.01-4 .2 mm; Automatic reading accuracy: better than 0.02mm ( 0.013mm) (20 times the probe);

6. The Operating Temperature: -20 ~ 60 C

7. Host Interface: standard USB;

8. The storage media: can be stored for more than 3000 photos (SD Card is free to expand);

9. Image storage format: BMP format, 24 bit color / 320 * 240;

10. Power supply: lithium battery, standby time: 18 hours;

11. Size: Host 113x70x16.5mm;

12. Probe: 48x56x58mm;

13. Weight: host 100 grams, 100 grams of the probe.

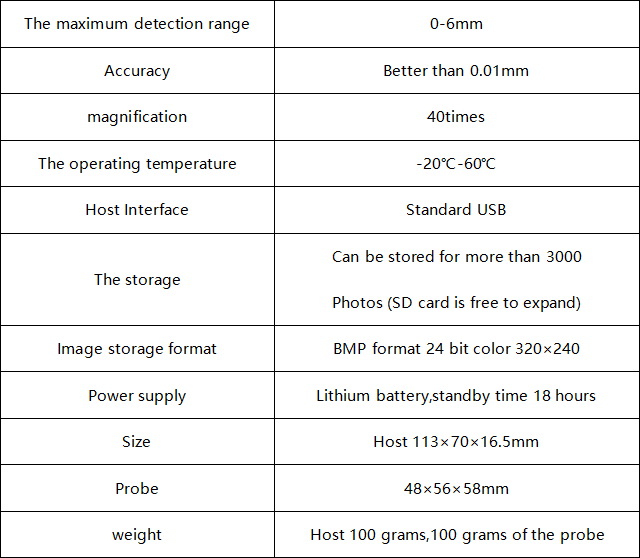

Technical Parameter

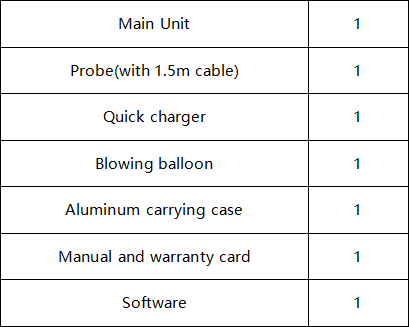

Standard configuration:
