Digital Rubber Hardness Tester TSI-400 Series
Product Overview
The standard rubber hardness tester covering Shore, IRHD and other
methods is widely used in the hardness testing of rubber, plastic
materials, O-rings, oil seals, thin tubes, seals and other
materials, and can serve the chemical industry, automotive
industry, military industry, etc.
Product Introduction
The modular design of the TSI-400 consists of four main components:
the main unit, the loading module, the auxiliary tooling module,
and the interchangeable indenter with 6 different test methods. The
modular design benefits from easy and cost-effective maintenance
and upgrades, as well as quick and easy assembly and disassembly of
the entire machine without the need for any tools. In addition, the
TSI-400 does not need to be used with a personal computer,
providing absolute ease of use. Personalized product customization
can be carried out for customers, so that production and testing
can be carried out accurately and effectively.
Standards
DIN 53505,ASTMD 2240,ISO 48-9,GB/T 531,GB/T 2411,GB/T 23651,GB/T
38243,JJG 304-2003,JJG 1039 - 2008, JJG 666 - 1990, etc.
Test Methods
Shore A bar, Shore D bar, IRHD N bar, IRHD H bar, IRHD L bar, IRHD
M bar.
Basic configuration
● The main body of rubber hardness tester has integrated design,
one-button operation function and loading module
● It can automatically identify the type of indenter and test
module (the quantity and model are purchased by order);
● It can be replaced, auxiliary tooling and its connecting lines
according to the test requirements (purchased by order);
● It can automatically locate special-shaped parts such as O-rings.
Replaceable indenters:

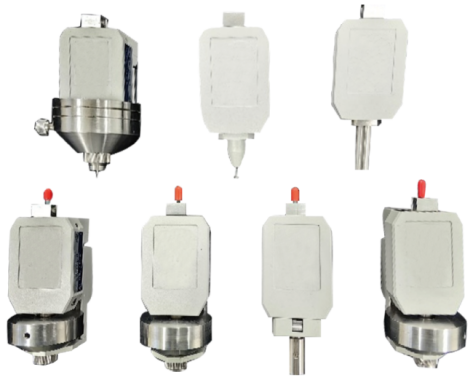

The interchangeable indenter is designed to be plug-and-play,
allowing the user to quickly remove and replace the indenter
without any tools. The highly intelligent loading module is
equipped with an automatic recognition function, which allows the
indenter to be inserted correctly and can be started immediately
without any setting tests. A total of 6 different types of
indenters are available, including Shore and IRHD, as standard. All
indenters can be installed on the TSI-400 rubber hardness tester
for a truly all-round and convenient hardness test.
Master Control Unit & Software:
Each TSI-400 is equipped with an integrated chassis and highly
intelligent software, which serves as the main system control unit,
and the simple operation mode allows every user to easily get
started in the shortest time. The test value can be read easily and
quickly and other functions can be adjusted, such as the current
status, measurement mode, number, test time, number of measurement
points, measured value, median value and average value display, as
well as the use of test module, data storage module, auxiliary
tooling module, data statistics module and setting module.
Depending on the customer's needs, the test values can also be
printed on a printer.
Sample Positioning Device:

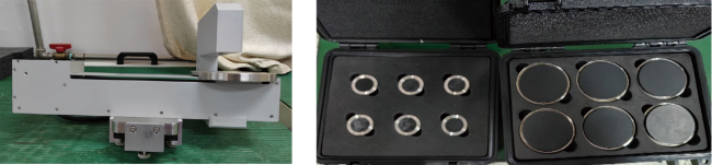

TSI-400 Rubber Hardness Tester Sample Positioning Device is an
extremely important auxiliary tool in rubber hardness testing, and
the wrong test value is often obtained because the sample cannot be
accurately positioned and placed. Therefore, under the test of IRHD
M, an auxiliary tooling module is provided, which can complete the
auxiliary positioning of rubber O-rings and other types of samples,
and automatically travel to the pressure measurement area, so that
you can have a closer control of quality.
Specifications:
Included with a CNAS-accredited calibration certificate and rubber
hardness blocks, the full range of Shore and IRHD is available in
different hardness ranges.
| Product Model | TSI-400A | TSI-400D | TSI-400M | TSI-400N | TSI-400L | TSI-400H |
| Code# | 842-814 | 842-824 | 842-834 | 842-844 | 842-854 | 842-864 |
| Measuring Range | (0~100) | (0~100) | (30~100) | (30~100) | (10~35) | (85~100) |
| HA | HD | IRHD M | IRHD N | IRHD L | IRHD H |
| Resolution | 0.1H |
| Force Accuracy | ±37.5mN | ±222.5mN | ±1.0mN | ±30mN | ±30mN | ±30mN |
| Press-in depth accuracy | ±0.02mm | ±0.02mm | ±0.002mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Application Range | Soft rubber, elastomer, natural rubber
products, neoprene, foundry trees
Fat, polyester, soft PVC, rollers, leather, etc | Hard rubber, hard plastic materials, acrylic glass, polystyrene,
hard plastics,
Resin, printing rollers, vinyl sheets, cellulose acetate, etc | Thin and soft O-shaped rubber rings, molds, labels
Quasi-shape samples | Soft rubber, highly elastic materials, easily deformable plastic
materials | Sponges, styrofoams, silicone rubber, gel materials | Hard rubber, hard plastic materials, acrylic glass, polystyrene,
hard plastics, resins, printing roller vinyl sheets, cellulose
acetate, etc |
|
|
| Power supply mode | AC power supply: Voltage 220VAC; Frequency 50Hz |
| Maximum power consumption | 20W |
| Operation Temperature | 18℃~25℃ |
| Storage temperature | In the storage environment, it should not be put together with
corrosive substances such as acids and alkalis. |
| Operation Humidity | 20%~80% |
| Operation Mode | Touchscreen control |
| Test Mode | Automatic testing |
