    Ndt Iiw-Type 2 Inch Calibration Block Standard Usaf T.0.33b-1-1

    Ask Lasest Price
    Brand Name : TMTECK
    Model Number : IIW Type 2
    Price : Negotiation
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100pcs/month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Ndt Iiw-Type 2 Inch Calibration Block Standard Usaf T.0.33b-1-1

    NDT IIW-Type 2 Calibration Block Ultrasonic Testing Meter according to USAF T.0.33B-1-1

    About the item

    A modified version of the original IIW-Type 2 design in one
    Inch version, design based on International Welding Institute,
    ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1
    Includes a 2.0" x-ray .250" deep cut overlay on
    4.0" radius for distance calibration. Also Includes
    Numbers 3, 5 and 8 through holes (3/64", 5/64" E
    8/64" diameter) for sensitivity or surface testing
    Inspection, and calibration of distance mark to 2.0" bore.
    • Dimensions: 12.0" x 4.0" x 1.0"
    Material: 1018 Steel
    Weight: 6 KG
    Package Including:
    1 Unit Calibration Block
    1 suitcase
    1 Certification

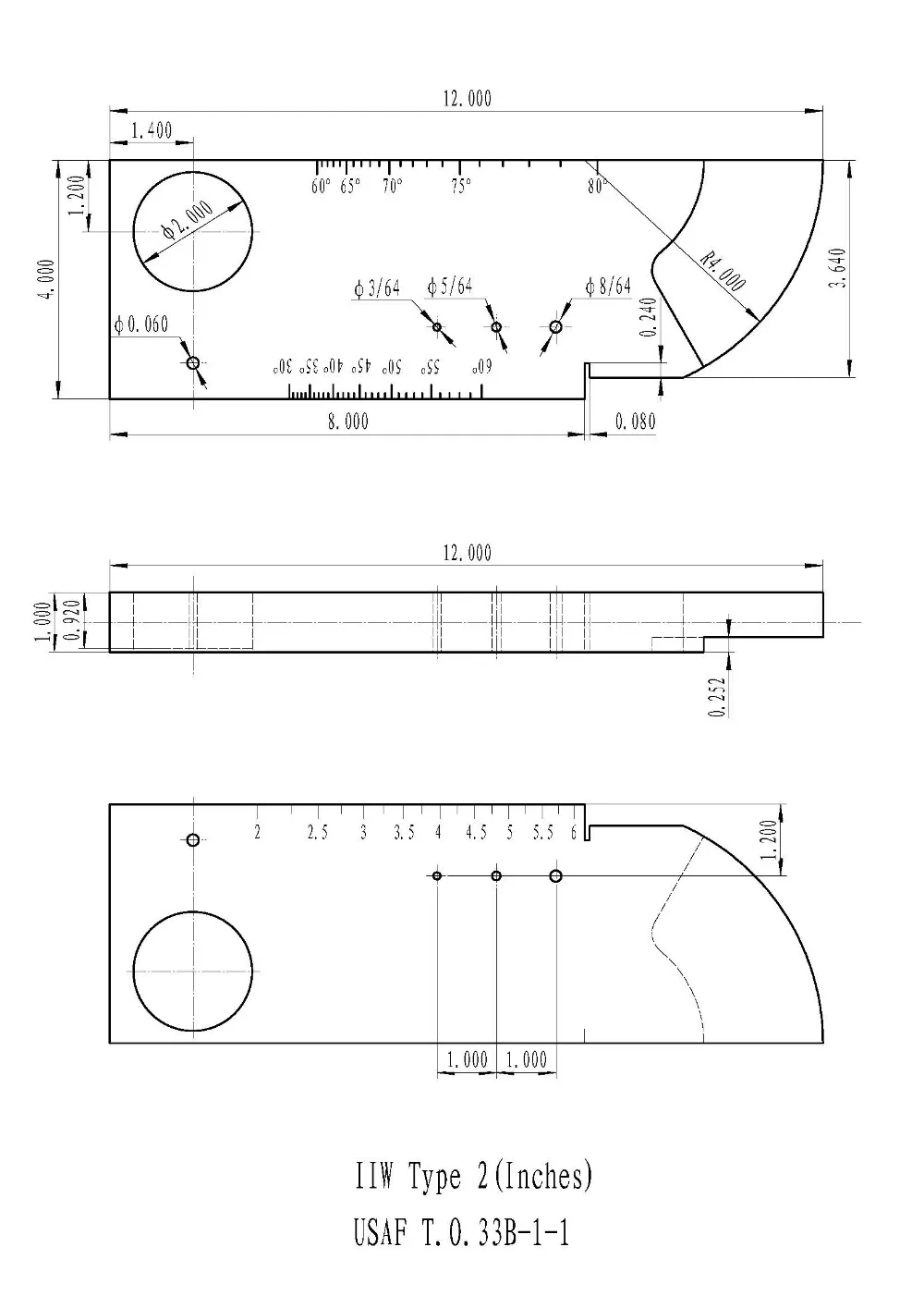

    The design of the test block:

    Ndt Iiw-Type 2 Inch Calibration Block Standard Usaf T.0.33b-1-1
