Product Description:

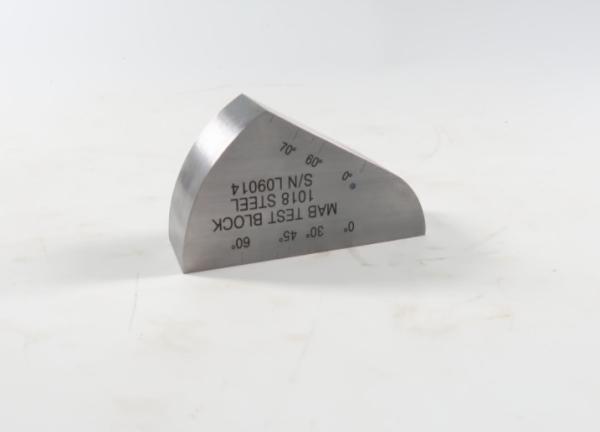

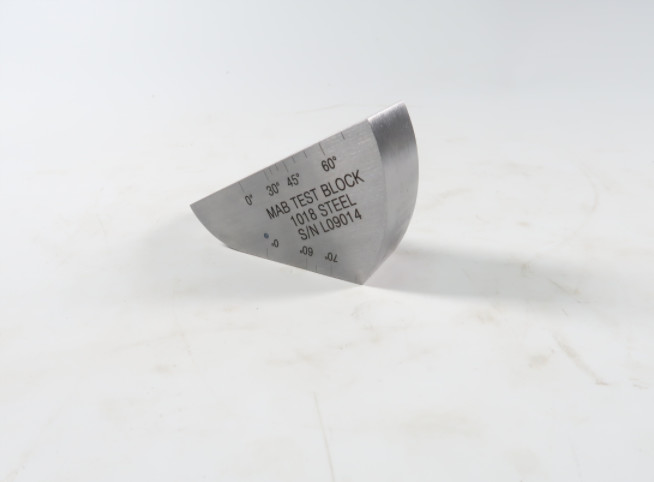

MAB Angle Beam ROMPAS Calibration Standard
Carbon Steel Block Metric
Specification
A PH Tool designed block, the METRIC miniature angle
beam block is also known as a "Rompas" block or simply
"Angle Beam". It is a substitute for the DSC block for
distance, beam index, refracted angle and sensitivity
calibration.
In accordance with PH Tool drawing No. 10170, a metric
equivelant, based on ASTM E164 and U.S. Bureau of Public
Roads, Type B specifications.
Metric version:Block measures 25 mm thick and contains
a 25 and 50 mm radius, and a 2 mm FBH at 6.25 mm
metal travel distance (1/4T).
Dimensions: 25 mm thick.
Also available in 12.5 mm thickness.
Package including
1 Calibration block
1 certificate
1 suitcase
Features:
- Product Name: Ultrasonic Calibration Block
- Product Type: Calibration Blocks
- Material: 1018 Steel/ Stainless Steel/Aluminum
- Type: NDT Accessories
- Country of Origin: Beijing, China
- Test block
- Ultrasonic flaw block
Technical Parameters:
| Product Attribute | Value |
|---|
| Product | Calibration Blocks |
| Type | NDT Accessories |
| Material | 1018 Steel/ Stainless Steel/Aluminum |
| Weight | 2kg |
| Standard | ASTM E164-2013 |
| Test Blocks | MAB(Rompas Calibration block) |
| Country of Origin | Beijing, China |
Applications:
The TMTECK MAB Ultrasonic Calibration Block is suitable for a wide
range of applications, including flaw detection, thickness
measurement, and weld inspection. The product is widely used in
industries such as aerospace, automotive, manufacturing, and
construction.
The Ultrasonic Calibration Block is a versatile product that can be
used in various scenarios. One of the most common applications is
in the calibration of ultrasonic flaw detectors. The calibration
block is used to simulate a defect of known size and location,
allowing the user to calibrate the instrument's sensitivity and
accuracy.
The TMTECK MAB Ultrasonic Calibration Block is suitable for both
field and laboratory use. The product is compact and lightweight,
making it easy to transport and use in the field. The aluminum
metal box packaging ensures that the product is protected during
transport and storage.
TMTECK MAB Ultrasonic Calibration Block has a minimum order
quantity of 1 and can be delivered within 5-7 days. The product is
available for payment through T/T and Paypal. The supply ability
for this product is 100 pcs/month.
Customization:
The Ultrasonic Calibration Block is made using 1018 Steel,
Stainless Steel, or Aluminum materials. It complies with the ASTM
E164 standard and is suitable for use in non-destructive testing
applications. The product is capable of delivering accurate and
reliable measurements.
TMTECK has a supply ability of 100 pcs/month, and the product's
country of origin is Beijing, China. Customers can take advantage
of the product customization services to get calibration blocks
that meet their specific requirements.
