TMU-600 automatic light curing cold mounting machine

Light curing Mosaic has the advantages of speed, low viscosity, transparency and so on.

The TMU-600 automatic light curing cold mounting machine, which uses dual wavelength LED lights, is dedicated to light curing of light curing mounting.

Cold light source, no thermal radiation, the surface temperature rise of the illuminated product is low, to solve the problem of thermal damage in the mounting process.

The transparent light curing mounting fills the void in the sample to achieve a tight bond between the sample and mounting, so that the sample is well protected and supported during the grinding and polishing process.

I, Product Features

1. Dual wavelength combination: 365+395; (395+450, 365+450 optional);

2. Three levels of brightness for each wavelength are set independently;

3. Upper and lower, left and right, front, back and other six sides have surface light source and reflection film, uniform illumination, curing light efficiency is high;

4. Manual/automatic working mode.

5. 99 kinds of automatic working program, according to the set wavelength, brightness, light time.

6. The light panel can be easily replaced;

7.Long life: the service life is more than 10 times that of the traditional mercury lamp curing machine, and the service life is not affected by the number of switches;

8.Low energy consumption, power consumption is only 10% of UV curing machine (mercury lamp), can save 90% power;

9.Vacuum device to further reduce bubbles (optional).

II, Introduction to screen use

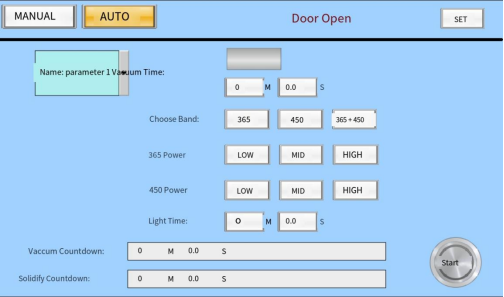

1.Automatic interface

2. Manual interface

III, Technical parameters

IV, Standard configuration

V, Options

	LC-2000	Light cure cold inlay 1000 ml/bottle Cure under UV light Low viscosity, curing speed block, good transparency
	Automatic vacuum system	Remove air bubbles in the Mosaic and at the interface with the sample
	CMM1T, CMM2T CMM3T CMM4T CMM5T	Clear cold inlay with mold 12 / box round Diameter: 20,25,30,40,50 mm Clear silicone rubber, with light curing cold inlay, can be used repeatedly
	CMM6T CMM7T CMM8T	Clear cold inlay with mold 6 / box oblong Length X width: 55X20, inner height :22mm L X W: 70X40, inside height :22mm L X W: 100X50, inside height :22mm Transparent silicone rubber, with light curing cold inlay, can be used repeatedly
	CXX1	300 disposable rectangular crystal molds/pack 24mm long, 10mm wide and 18mm high, molded from PS material This product is used in PCB factory to do metallographic section analysis plays the role of bearing section, is characterized by high transparency, beautiful and practical, save cold inlaying material
	CXX2	200 disposable square crystal molds/pack Length :24mm, width :24mm, height :20mm molded with PS material The product is used in PCB factory to do metallographic section analysis, which plays the role of bearing section, characterized by high transparency, beautiful and practical, saving cold inlaying material
	CXX3	Disposable round crystal mold (semi-lattice) 100 pieces/pack The outer diameter is 30mm, the height is 18mm. It is made of PS material by injection molding This product is used in PCB factory to do metallographic section analysis, which plays the role of bearing slices It is characterized by high transparency, beautiful and practical, saving cold inlaying material
	CXX4	Disposable round crystal mold (full cell) 100 pieces/pack 30mm outer diameter, 18mm high injection made of PS material This product is used in PCB factory to do metallographic section analysis, which plays the role of bearing slices It is characterized by high transparency, beautiful and practical, saving cold inlaying material
